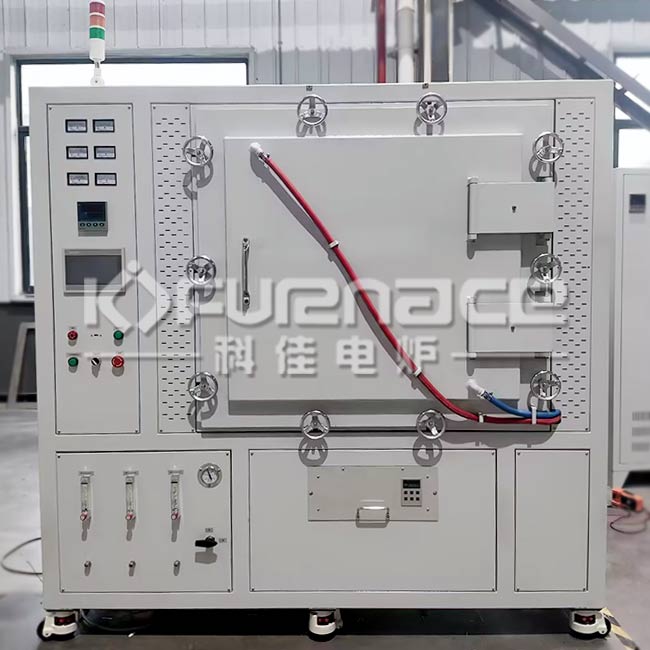

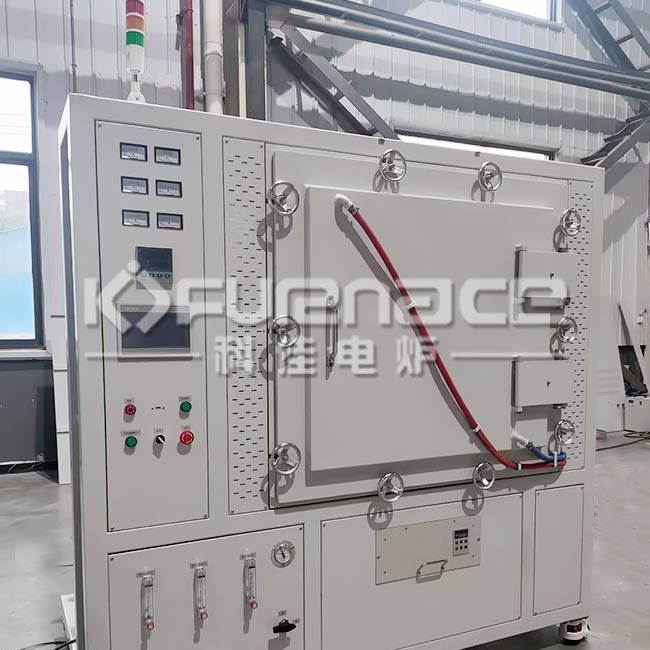

KJ-A1900-80LZ High temperature graphite box atmosphere furnace
  • KJ-A1900-80LZ High temperature graphite box atmosphere furnace
  • KJ-A1900-80LZ High temperature graphite box atmosphere furnace
  • KJ-A1900-80LZ High temperature graphite box atmosphere furnace
  • KJ-A1900-80LZ High temperature graphite box atmosphere furnace
  • KJ-A1900-80LZ High temperature graphite box atmosphere furnace

    Model:KJ-A1900-80LZ

    Description:

    The high-temperature box-type atmosphere furnace has a beautiful appearance and an advanced and reasonable structural design. It uses high-quality graphite as the heating element and the furnace chamber uses high-quality graphite felt. It adopts a double-

    Product description:
    The high-temperature box-type atmosphere furnace has a beautiful appearance and an advanced and reasonable structural design. It uses high-quality graphite as the heating element and the furnace chamber uses high-quality graphite felt. It adopts a double-layer shell structure and an intelligent program temperature control system to keep warm and save energy.

    high-temperature box-type atmosphere furnace

    graphite atmosphere furnace
    high-temperature box-type atmosphere furnace


    features
    • The heating element is made of high-quality graphite, and the furnace insulation material is made of high-quality graphite felt, which has good thermal insulation performance, durability, high tensile strength, no impurities, high purity, and obvious ener

    • The entire furnace body adopts a double-layer inner liner structure with an air gap in the middle. Even if the furnace chamber is at a high temperature, the surface of the furnace body can still be safely touched without feeling hot.

    • The furnace is made of high-quality energy-saving materials, and the energy consumption of the whole machine is low.

    • Over-temperature and broken alarm, safe and reliable operation with multiple protection functions.

    Technical Parameters
    Model KJ-A1900-80LZ
    Shell structure Double-layer air-cooled structure, built-in heat dissipation fan to ensure that the shell surface is not hot
    Surface treatment Made of high-strength carbon steel, pickled and phosphated to remove rust, then electrostatically sprayed, beautiful and elegant.
    Chamber size 400*400*depth 500mm
    Working temperature No more than 1800℃
    Constant temperature accuracy ±1℃
    Chamber material High-quality graphite felt
    Temperature control mode Intelligent multi-stage program temperature control, phase-shift trigger, thyristor control, the instrument has PID self-tuning function. The touch screen can store multiple processes, and the sintering data can be recorded and exported in EXCEL format. A communication interface is reserved.
    Heating rate 0-10℃/min adjustable
    Alarm With over-temperature alarm and thermocouple break alarm function
    Heating element High-quality graphite
    Number of temperature zones Single temperature zone
    Thermocouple Tungsten-rhenium
    Furnace door opening method Side opening
    Inlet and outlet one inlet, one outlet, one vacuum pump exhaust port
    Atmosphere available Inert atmosphere to slightly positive pressure (less than or equal to 0.02MPA).
    Equipped with mechanical safety pressure relief valve, automatic pressure relief in case of overpressure.
    Three float flow meters can be switched on and off by PLC.
    Vacuum degree Mechanical pressure vacuum gauge can reach -0.1MPA
    Vacuum pump High-speed mechanical pump can quickly replace the gas in the furnace
    Working voltage 380V  50HZ
    Maximum power 50 KW  subject to actual needs
