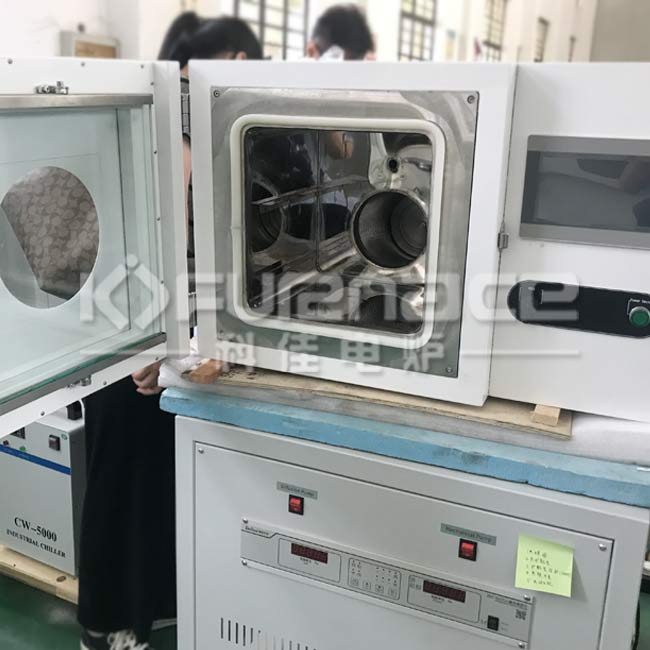

High Vacuum Oven

Model：KJ-VM300-27CWG

Description：

This High Vacuum Oven is suitable for baking, temperature drying, low-vacuum sealing test, anaerobic treatment, stress relief, Applications such as curing, anaerobic testing of stage, etc.

Introduction:
This High Vacuum Oven is suitable for baking, temperature drying, low-vacuum sealing test, anaerobic treatment, stress relief, Applications such as curing, anaerobic testing of stage, etc.

Furnace main specifications

Furnace Part
Display	LCD Touch Screen
Temperature control range	50～300℃
Chamber Size	200200300mm 12L Or 300300300mm 27L
Temperature resolution	±0.1℃
Temperature fluctuation	±0.3℃
Sensor accuracy	±0.1°C
Ultimate Vacuum Degree	6.7*10^(-3)Pa
Temperature controller	Main temperature controller High-precision microcomputer PLC program temperature controller, equipped with 30 temperature control steps, can set 100 cycles, adopts multi-group segmental PID and empirical value fuzzy control technology, precise temperature control, arbitrary setting of working temperature, With 10 temperature linear error calibration, data record storage, USB data export function, fault alarm query function
Heating rate	0.5~1.5℃/min (no load)
Temperature detection	The detection sensor adopts PT100 thermocouple
Shell material	High-quality cold-rolled steel plate/thickness 1.2mm steel plate welded with 10010080mm channel steel, surface electrostatic spray treatment.
Chamber Material	High-quality SUS304/thickness 6.0mm brushed stainless steel plate, using laser cutting and blanking, low-temperature laser welding for splicing parts, passivation treatment of welding parts, surface grinding and polishing.
Box Door Structure	1. Channel steel and stainless steel plate are connected (this case has no observation window function, and the shape of the picture is only for reference) 2. Manual tight locking 3. High-power stainless steel vacuum hinge
Door Seal Material	The tightness of the box door can be adjusted, and the T-shaped silicone rubber door seal ring imported from Japan is integrally formed to ensure high vacuum in the box
Insulation Material	High temperature resistant ceramic glass fiber
Three-color light alarm definition	1. The green light is on for normal operation 2. The yellow light is on the standby state 3. The red light is on for abnormal alarm
Heating method	External bundled heater multiple groups
Shelf	2 stainless steel strip partitions at the bottom
Bottom structure	There are 4 mobile casters installed at the bottom of the machine, with brake function and level adjustment
Vacuum System Part
Max. Vacuum	10^-3Pa (in empty and cold state)
Vacuum System-Optional	1. Mechanical rotary vane vacuum pump + diffusion pump with digital compact vacuum gauge OR 2. Mechanical rotary vane vacuum pump + molecular pump with digital compact vacuum gauge
After sale service	12 month quality warranty except Consumables parts like heating elements
Standard Accessories	Protective Glove x 1 pair Crucible Tong x 1 pair
Optional Water Chiller
Water Chiller	Used to cool the vacuum pump
