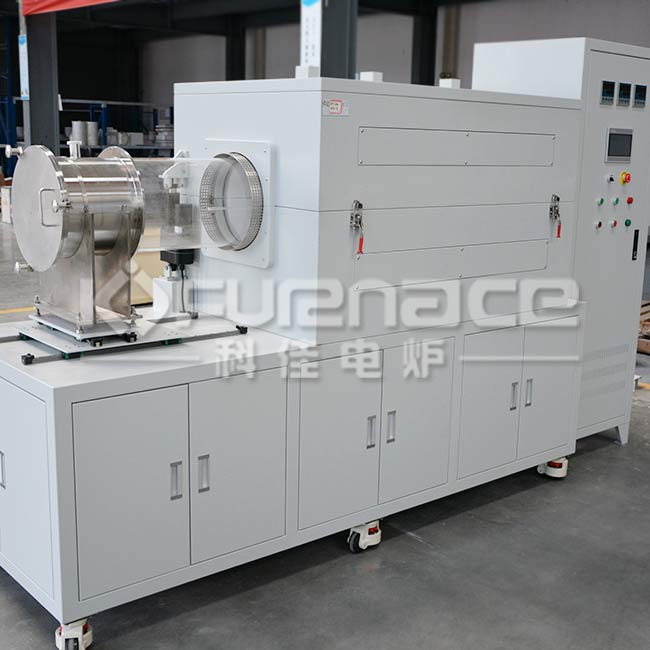

Sliding Flange Large Diameter Tube Furnace

Model：KJ-TG1000-S300LK3

Description：

The rotary heating furnace is composed of a furnace shell, a furnace lining, a heating element, and a furnace tube rotating device. The furnace shell is divided into upper and lower parts.

Product description:
The rotary heating furnace is composed of a furnace shell, a furnace lining, a heating element, and a furnace tube rotating device. The furnace shell is divided into upper and lower parts. The upper part is electrically controlled and can be flipped open when loading and unloading the furnace tubes. The furnace lining is made of alumina fiber lining. The heating element adopts high-temperature silicon carbide straight rods arranged up and down on the furnace lining. The furnace tube rotation device is driven by frequency conversion speed regulation, and the rotation speed can be set arbitrarily within a certain range.

Technical Parameters:

Product name	Large Diameter Tube Furnace
Model	TG-T1100-S300LC3
Furnace tube size	About Φ300×1550 mm (subject to actual size)
Furnace tube material	Quartz tube
Furnace tube structure	Customized single-ended quartz tube, quartz tube with quartz inlet tube (user-prepared)
Heating zone	Three temperature zones, the length of each temperature zone is 300mm, and the total length of the heating zone is 900mm
Working temperature	≤1000℃
Heating element	High temperature silicon carbide rod
Temperature control accuracy	±1℃
heating rate	1-15℃/min， Can be freely adjusted according to the process
Furnace structure	1. Double-layer shell structure is adopted, and a cooling fan is installed inside the furnace body, so that the surface temperature of the equipment is less than 60°C 2. The furnace is composed of furnace material, insulation material and heating elements 3. The temperature control system consists of temperature control instruments, control elements and thermocouples Furnace body and temperature control integrated structure, the furnace is fixed on the lower box
Temperature test element	K-type thermocouple, three thermocouples for temperature control, more accurate temperature control
Temperature control system	The temperature control system adopts touch screen operation, artificial intelligence adjustment technology, has PID adjustment, self-tuning function and can compile 30 stages of temperature rise and fall programs; Temperature Control System 2. Temperature control accuracy ±1ºC 3. With over-temperature protection, the electric furnace heating circuit is automatically cut off when over-temperature or broken, allowing no one to guard 4. The instrument has the function of temperature self-adjustment 4. Optional temperature control software can be used to set the heating temperature of the equipment using a computer. 5. Touch screen operation, data can be stored and output, with 485 interface
sealing flange	Sleeve flange is adopted, KF25 drain port/air outlet, KF25 vacuum port are all designed on the flange)
way of opening the door	Electric door opening
air intake control	Inert protective gases such as nitrogen and argon can be passed through, and the intake range is measured by a rotameter, and the flow range can be adjusted according to user requirements
Operating Voltage	AC 380V 50Hz
heating power	36KW
Provide related accessories	Crucible hook, high temperature gloves, thermocouple, instruction manual, warranty card, 4 spare rods, etc.
After-sales service	12-month warranty, lifetime warranty (heating elements and other random accessories are not covered by the warranty)
