Model：KJ-T1200-II

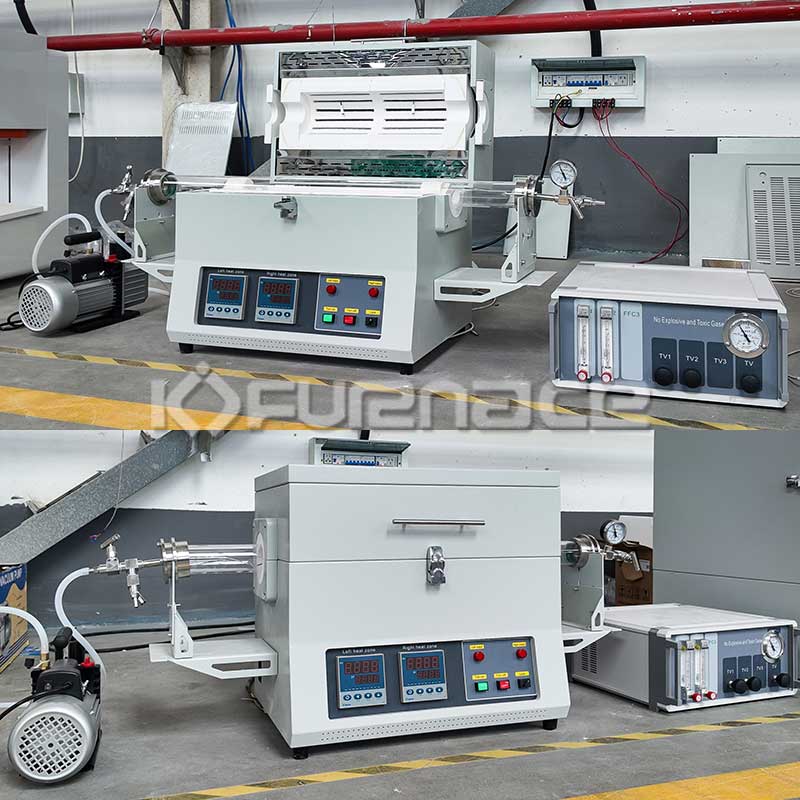

Double-Zone Tube Furnace

Description：

This KJ-T1200-II tube furnace is mainly used for sintering, coating, Nanotube study, soldering, annealing, melting, analyzing of metal and non-metal materials in both vacuum condition and atmosphere condition in laboratories and enterprises.

Email：web@kejiafurnace.com

Leave A Message

Online Chat

IntroductionFeaturesTechnical ParametersInquiryCustomer Case

Specific Introduction:
This KJ-T1200-II tube furnace is mainly used for sintering, coating, Nanotube study, soldering, annealing, melting, analyzing of metal and non-metal materials in both vacuum condition and atmosphere condition in laboratories and enterprises.

features

The two temperature zones can be independently controlled to form a temperature gradient within the heating zone or a longer constant temperature zone.
Safe and anti-scalding: Carbon steel shell and ceramic fiber lined chamber, double-layer structure, with cooling fan, the surface of the furnace body is safe to touch without feeling hot.
Precise temperature control: PID automatic temperature controller, 30-segment programmable control, easy to operate, accurate and reliable temperature control,
Vacuum atmosphere: The furnace tube and the flange are extruded and sealed with a silicone O-ring, which is easy to remove and has strong sealing performance. The stainless steel metal flange is equipped with valves and related interfaces, and can be eva

Technical Parameters

Model	KJ-TG1200-S	KJ-TG1400-S	KJ-TG1600-S
Max. Temperature	1200℃	1400℃	1600℃
Working Temperature	1100℃	1300℃	1500℃
Tube Diameter/mm	Φ60/80/100/120	Φ60/80
Tube material	Quartz tube	Alumina ceramic tube
Heating zone length	220+220mm/300+300mm
Other specifications available upon request
Insulation layers	High-Purity Alumina Ceramic fiber
Heating Rate	Suggest 0-10 °C/min, Max. 20°C/min
Control Accuracy	±1℃
Temperature Sensor	N-type Thermocouple	S-type Thermocouple	B-type Thermocouple
Heating Element	0Cr27Al7Mo2 Resistant Wire	SiC Heating Rods	MoSi2 Heating Rods
Sealing	Flanges
Structure	Split	Split and Non-split	Non-split
Accessories	Gloves, Crucibles, Tongs, Crucible hook.
Optional	Vacuum pumps, Gas-mixing system with mass flowmeters or float flowmeters.
Customization is available.

We can customize the configuration of single temperature zone, dual temperature zone, three temperature zone and more temperature zones according to customer needs. Open-top and closed tube furnaces. As well as rotating structures, vacuum structures, etc. Welcome friends to come to consult and purchase.
