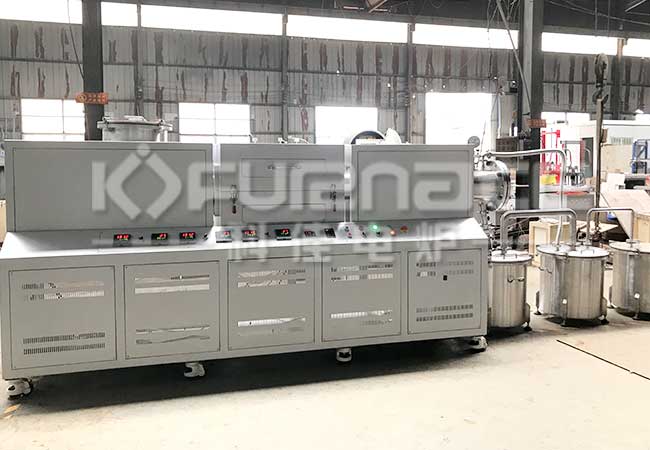

Sealed Rotary Tube Furnace
  • Sealed Rotary Tube Furnace
  • Sealed Rotary Tube Furnace
  • Sealed Rotary Tube Furnace
  • Sealed Rotary Tube Furnace

    • Sealed Rotary Tube Furnace

    Model：KJ-RT1000-3Z

    Description：

    This rotary tube furnace is a custom-made model that can effectively save energy and is equipped with three material buckets for continuous loading and unloading.

    Email：web@kejiafurnace.com
    Leave A Message Online Chat
    IntroductionFeaturesTechnical ParametersInquiryCustomer Case
    Introduction:
    This rotary tube furnace is a customized model. It has an opening structure on the double-layer carbon steel shell. It is easy to pick up and place the furnace tube. It is equipped with an air cooling system. The furnace is made of high-purity Al2O3 fiber refractory insulation material, which can effectively save energy. Equipped with three material barrels, materials can be fed in and out continuously.

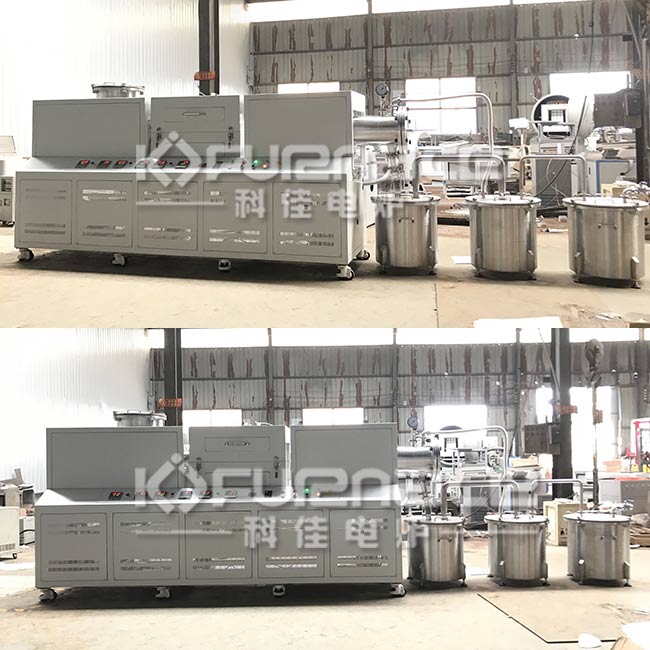

    Sealed continuous feeding and discharging tube furnace
    Sealed continuous feeding and discharging tube furnace

    features

    • The furnace body can be tilted, and the furnace tube can rotate clockwise or counterclockwise. The appropriate rotation speed can be selected according to the shape, material, and temperature of the product being processed.

    • The temperature control system adopts PID method, and can set 30-segment temperature rising and cooling programs, and the temperature control accuracy can reach ±1℃.

    • With three barrels, a microprocessor-controlled stainless steel vibrating feeder and hopper allows for continuous sample processing.

    • Full touch screen human-computer interaction operating system, precise temperature control.

    Technical Parameters

    Model KJ-RT1000-3Z

    Structure    		 Carbon steel outside shell Alumina fiber lining
    Double-layer structure with cooling fan Split type
    Tube Material Hot zone Hastelloy
    Two side Stainless steel tube 200mm inner diameter

    Sealing    		 The left flange: Feeding system(Screw feeder) with stainless steel hopper 30L and gas-in port.
    The right flange: Stainless steel collection bottles, rotatory joint, vacuum pump connection port.
    Vacuum pump VRD-24 Rotary vane pump
    Heating zone length 500mm-600mm (3 hot zone)
    Maximum Working Temperature 1000℃

    Temperature sensor type    		 Total number for thermocouple is 6.
    3 K-type thermocouple for 3 heating zone( heating )
    3 K-type thermocouple in the tube ( monitoring)(when the temperature in the tube below than 1000C, the furnace will heat up )
    Heating method Preheating the furnace to 1000 degree, then feed the material to the  hot zone)
    Tube function Rotating and tilt function(Tilt angle is 10°)
    Temperature Control Yudian Brand temperature controller 3 30 steps programmable
    PID automatic control Over-temp protection
    Heating Rate 0~15℃/min (suggestion: ≤10℃)
    Temperature Accuracy +/-1℃
    Heating Element SiC heating element
    Tube Rotating speed 0-20r/m (Clockwise and anticlockwise)
    Tube Tilting angle 10°.
    Working Voltage 380V 50Hz 3 phase-five wire system
    Max. Power 15.0 KW
    Production Period 50 working days
    Warranty Period 1 year (the consumable parts such as tube is not included)

    Sealed rotary tube furnace
