Product Description:

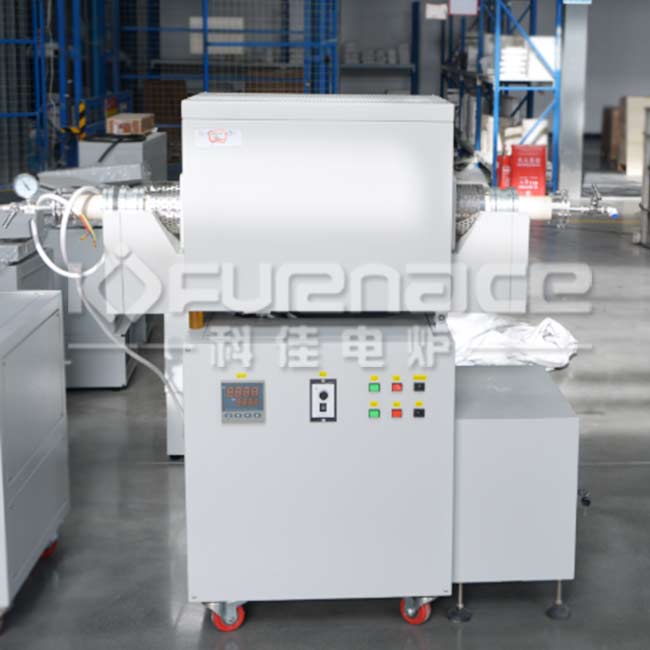

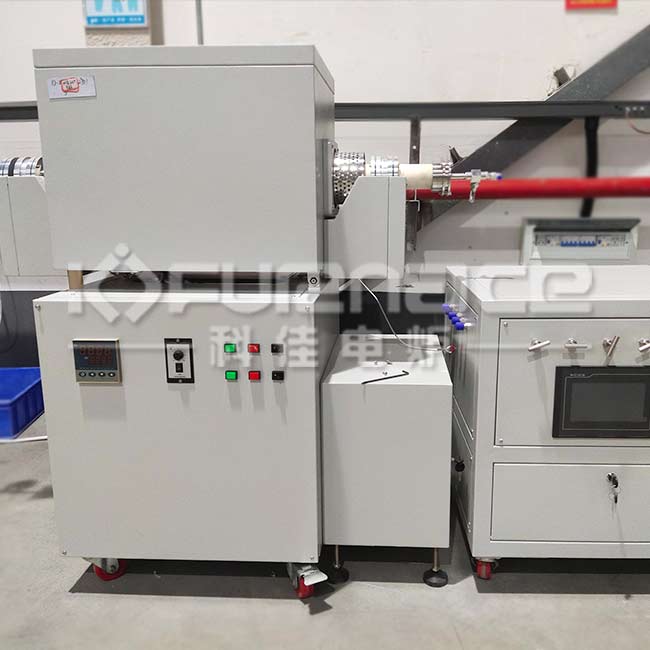

The rotary tube furnace is heated by silicon-molybdenum rods, 30-segment program temperature control system, phase-shift trigger, thyristor control, the furnace is made of alumina polycrystalline fiber material, the temperature field is balanced, and there is an air cooling system between the double-layer furnace shells. Can heat up quickly.
Scope of application:
This equipment is professionally used in laboratory calcining and drying of battery positive and negative electrode materials, non-strong acid-base powder materials, and granular materials. Users can choose to fire under vacuum or under atmosphere protection according to the materials to be fired.
Technical Parameters:
The rotary tube furnace is heated by silicon-molybdenum rods, 30-segment program temperature control system, phase-shift trigger, thyristor control, the furnace is made of alumina polycrystalline fiber material, the temperature field is balanced, and there is an air cooling system between the double-layer furnace shells. Can heat up quickly.
Scope of application:
This equipment is professionally used in laboratory calcining and drying of battery positive and negative electrode materials, non-strong acid-base powder materials, and granular materials. Users can choose to fire under vacuum or under atmosphere protection according to the materials to be fired.
Technical Parameters:
| Product name | Inclined Rotary Vacuum Tube Furnace |
| Model | KJ-R1600-L60Z4 |
| Shell structure | Double-layer shell. Equipped with air cooling system |
| Furnace tube size | Outer diameter 60*Length about 1200mm - Subject to actual needs |
| Tube material | Corundum tube |
| Temperature zone length | The total length is 300mm |
| Working temperature | The temperature is not higher than 1600°C under continuous operation; the maximum temperature: 1700°C |
| Temperature control method | Using PID controller, intelligent 30-segment programmable control |
| Super high temperature alarm | With super high temperature alarm |
| Marriage Reminder | There is a reminder |
| Furnace chamber material | High Purity Alumina Refractory Fiber |
| Heating rate | 0--10℃/min (Recommend ≤5℃/min above 1400℃) |
| Heating element | High quality silicon molybdenum rod |
| Temperature measuring element | Type B thermocouple |
| Operating Voltage | 220V 50HZ |
| tiltable angle | 0-35 degrees (adjustable) |
| Furnace tube speed | 0.1-13 rpm (adjustable speed, adjustable rotation direction) |
| sealing flange | Stainless steel metal flange, with valves and related interfaces, easy to disassemble and assemble, can be vacuumed and filled with protective gas to slightly positive pressure (less than 0.02MPA) |
| Airway assembly | 4-way touch screen mass flow meter, which can control the gas flow through the valve. |
