Introduction:

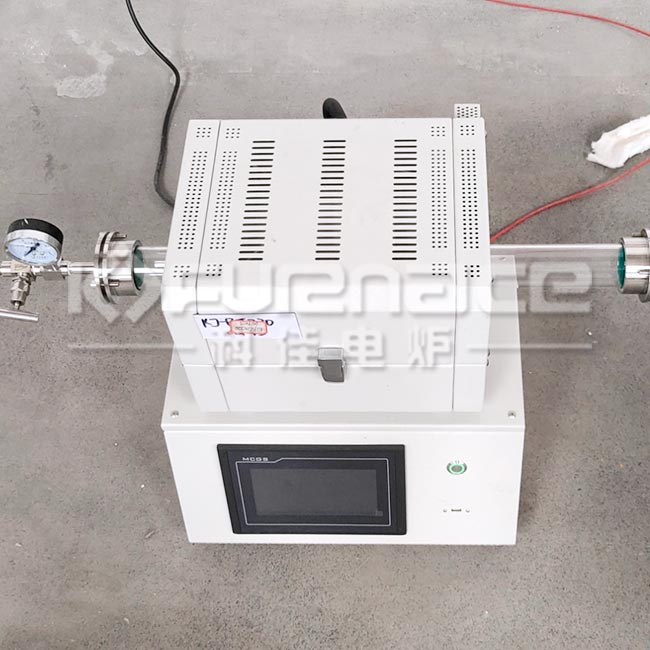

The quartz tube with flanges and the vacuum pump, it can work both for vacuum and atmosphere conditions.
Application:

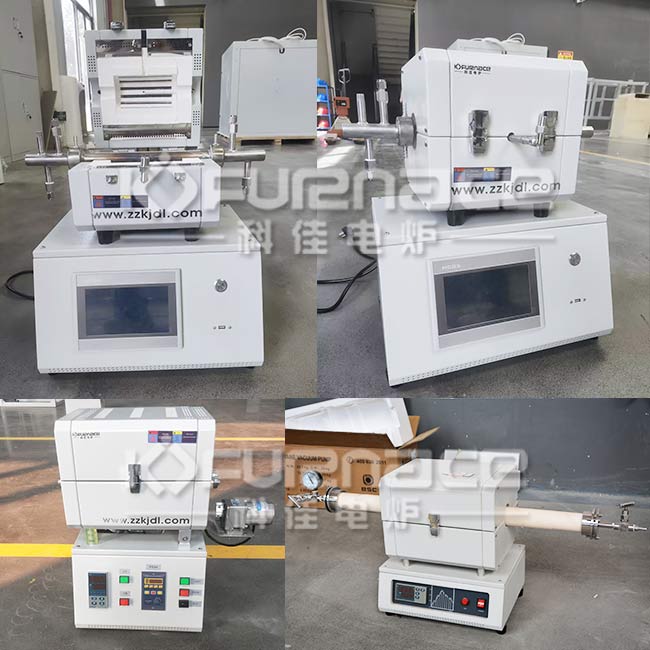

This LCD Touch Screen Mini Tube Furnace is mainly used for sintering, coating, Nanotube study, soldering in both vacuum condition and atmosphere condition in laboratories and enterprises.
Features:
Compact structure, Low power dissipation, Accurate control, Stable performance, Easy operation.
Parameters:
The quartz tube with flanges and the vacuum pump, it can work both for vacuum and atmosphere conditions.
Application:
This LCD Touch Screen Mini Tube Furnace is mainly used for sintering, coating, Nanotube study, soldering in both vacuum condition and atmosphere condition in laboratories and enterprises.
Features:
Compact structure, Low power dissipation, Accurate control, Stable performance, Easy operation.
Parameters:
| Model | KJ-T1200-S25K1 | KJ-T1200-S30K1 | KJ-T1200-S40K1 | KJ-T1200-S50K1 |
| Top Temperature | 1200℃ | |||
| Working Temperature | 1100℃ | |||
| Quartz Tube Diameter/mm | Φ25 | Φ30 | Φ40 | φ50 |
| Customization is available upon request. | ||||
| Heating zone length | 200/300mm(Customization) | |||
| Insulation layers | High-Purity Alumina Ceramic fiber | |||
| Heating Rate | 0-20℃/min | |||
| Control Accuracy | ±1℃ | |||
| Temperature Sensor | N-type Thermocouple | |||
| Heating Element | 0Cr27Al7Mo2 Resistance Wire | |||
| Sealing | Flanges | |||
| Structure | Split | |||
| Optional | Vacuum pumps, Gas-mixing system with mass flowmeters or float flowmeters. | |||
