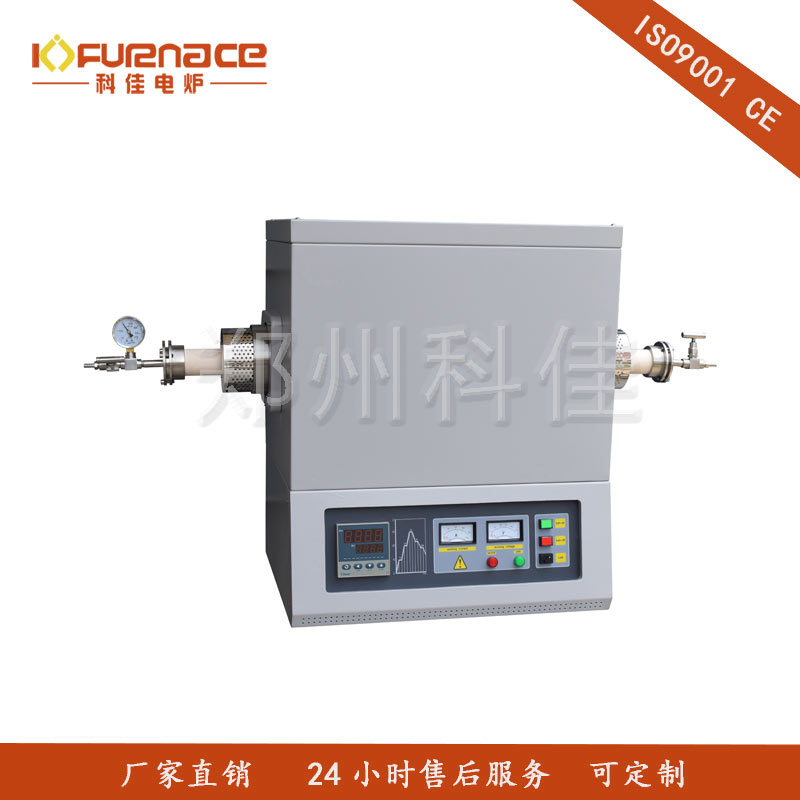

Part 1 Tube furnace system
| Model | KJ-T1700-80(400mm) | |
| Tube furnace | Display | LED Display |
| Max. Temperature | 1700℃ | |
| Continuous Working Temperature | ≤1600℃ | |
| Heating Zone | single zone 400mm | |
| Heating Element | MoSi2 rod | |
| Thermocouple | B type | |
| Temperature Control Accuracy | ±1℃ | |
| Tube Size | OD 80mm ID 74mm Total length 1200mm |
|
| Material: Alumina tube | ||
| Temperature Control | PID automatic control via SCR power control | |
| Heating curves | 30 steps programmable | |
| Heating rate | 0-10C/min | |
| Protection | Over-heated protection | |
| Chamber material | Ceramic fiber | |
| Vacuum Flange | Mechanical pressure gauge and Stainless Steel vacuum flange(as is shown) (-0.1-0.15MPa) |
|
| Power Supply | 220V, 50Hz, about 5KW | |
| Standard Accessory | Alumina tube×1 | |
| Thermal gloves×1 | ||
| Crucible hook×1 | ||
| Thermocouple | ||
| Tube block×2 | ||
| User Manual×1 | ||
| Gas system | One way float flowmeter Like N2: 25-250ml/min Gas flow range according to your need. |
|
| Part 2 Vacuum system | ||
| Vacuum pump+ connecting fittings | Vacuum rate -0.1MPa (rough vacuum) Vacuum pumping speed 120L/min |
|
