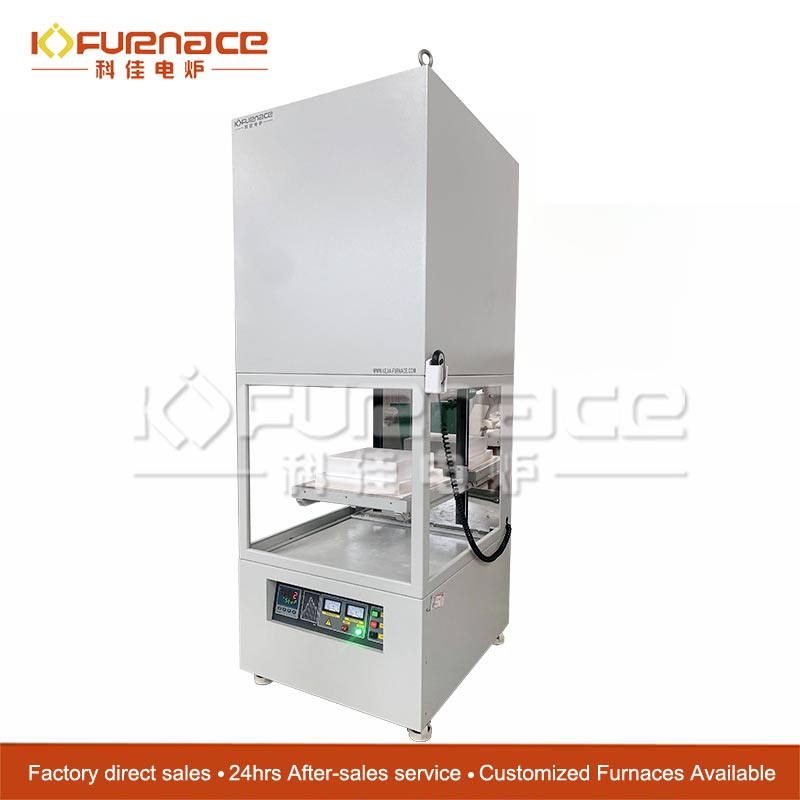

| Model | KJ-BLM1600-36LZ |
| Picture |  |
| Furnace structure | Double layer steel casing with dual cooling fan, temperature of furnace shell below 60deg.C. |
| Furnace liner | Two layers of ceramic fiber insulation materials First layer: 1800deg.C ceramic fiber board Second layer: 1600deg.C ceramic fiber board |
| Chamber dimension | 300 X 300 X 400mm (Can be customized according to customer needs) |
| Working temp. | ≤1600℃ |
| Heating rate | 0-20℃/min (Suggestion: 0-10℃/min) |
| Temp. accuracy | ±-1℃ |
| Thermocouple | B-type thermocouple |
| Temp. control | PID automatic control via SCR (Silicon controlled rectifier) Power control with phase angle fired, current limiting resistor 30 programmable segments for precise control Bulit-in PID auto-tuned function with overheating & broken thermocouple broken protection. Over temperature protection and alarm allows for operation without attendant |
| Heating element | MoSi2 heating rods Size: 6/12x350(hot zone)x220(cold zone )x 50 Two on each wall. |
| Lifting tray | speed of door up/down lift 80-100mm/second extension cable and up/down button handle |
| Warranty Period | 1 year (Consumable uncovered.) |
