Rotary Furnace for Porous Carbon Steam Activation: Continuous Production & Quality Improvement

Time：2026-04-03

This paper introduces a dedicated rotary furnace for porous carbon steam activation, which replaces traditional batch activation furnaces and enables fully continuous production. It solves common problems such as uneven activation, low yield, and large batch-to-batch variation, and greatly improves product stability, making it suitable for mass production of activated carbon, lithium‑ion battery hard carbon anodes, supercapacitor porous carbon, and other high‑performance porous carbon materials.

1 Core Design for Continuous Production & Quality Enhancement

1.1 Continuous Production Design
The furnace operates in a fully enclosed and automated mode with 24‑hour continuous feeding and discharging, improving productivity to 3–5 times that of batch furnaces and cutting labor costs by more than 60%.

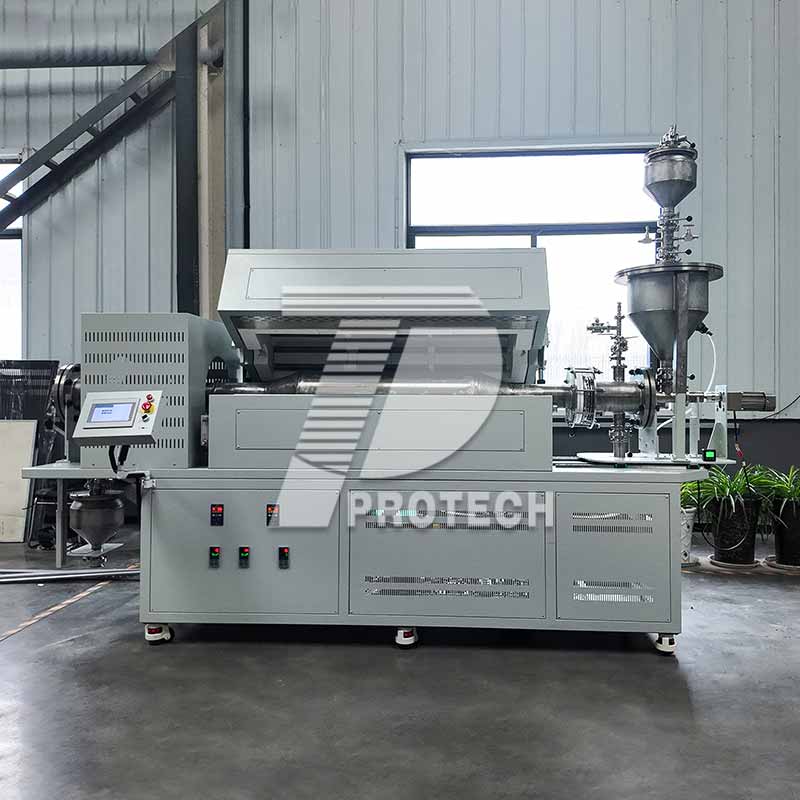

Feeding unit: Loss‑in‑weight metering feeder with double‑screw nitrogen sealing ensures feeding accuracy ±1% and prevents air ingress and carbon oxidation.
Furnace drive: Inclination angle adjustable 0–5°, rotation speed 0.5–5 rpm, activation time controllable 30–120 min to match various processes.
Discharging unit: Water‑cooled air‑lock valve discharges material continuously at below 100 °C, ready for direct sieving and packaging.

1.2 Quality Improvement Design
Internal structure and control systems ensure uniform activation, low impurities, and high yield, with batch performance deviation ≤±5% and activation yield 5–10% higher than batch furnaces.
Material turning & gas distribution: Curved lifters continuously tumble material for full contact between carbon and steam, eliminating dead zones.
Low‑contamination lining: Optional 310S stainless steel or 99.9% high‑purity SiC, with heavy metal release ≤10 ppb, meeting requirements for lithium battery and supercapacitor grades.
Precise temperature control: 3–5 independent zones (preheating, activation, cooling); uniform‑temperature zone in the activation stage accounts for >60% of furnace length, ensuring consistent activation quality.

2 Typical Capacity Parameters
Furnace tube inner diameter φ300 mm, total length 6 m, capacity 50–100 kg/h, activation yield 25–35%, suitable for pilot lines and small‑scale special carbon production.
Furnace tube inner diameter φ500 mm, total length 10 m, capacity 200–500 kg/h, activation yield 28–38%, suitable for medium‑small scale activated carbon and lithium battery hard carbon mass production.
Furnace tube inner diameter φ800 mm, total length 15 m, capacity 1–2 t/h, activation yield 30–40%, suitable for large‑scale activated carbon and industrial porous carbon production.

3 Key Advantages of Continuous Production
Stable high output: 24‑hour uninterrupted operation, productivity 3–5 times higher than batch furnaces, no repeated heating and cooling.
Lower energy consumption: Higher heat utilization and internal heat recovery reduce unit energy consumption by 20–30%.
Labor saving: Automated feeding, discharging and temperature control; only 2–3 operators per line, labor cost reduced by >60%.

4 Key Factors for High‑Quality Porous Carbon
Uniform activation: Continuous rotation and material turnover ensure even steam contact; specific surface area variation controlled within 5%.
Controllable pore structure: Precise adjustment of temperature, steam flow and residence time enables tailored micro‑/mesopore distribution for different applications.
Low impurity content: Continuous high‑temperature steam treatment reduces ash content to below 0.5%, improving purity and electrochemical performance.

5 Applications & Value
Supercapacitor electrodes: High specific surface area and uniform pores enhance energy density and cycle stability.
Wastewater treatment adsorbents: Tunable pore structure targets specific pollutants; continuous production meets large‑scale demand.
Catalyst supports: Low‑ash, high‑purity carbon provides a stable platform, extending catalyst life and improving efficiency.

6 Conclusion
The continuous steam activation rotary furnace realizes stable, high‑efficiency, high‑quality production of porous carbon, with obvious advantages over traditional batch furnaces in uniformity, yield, consistency and cost. It is an ideal upgrading equipment for industrial porous carbon manufacturing and new energy material production.
