Product Introduction:

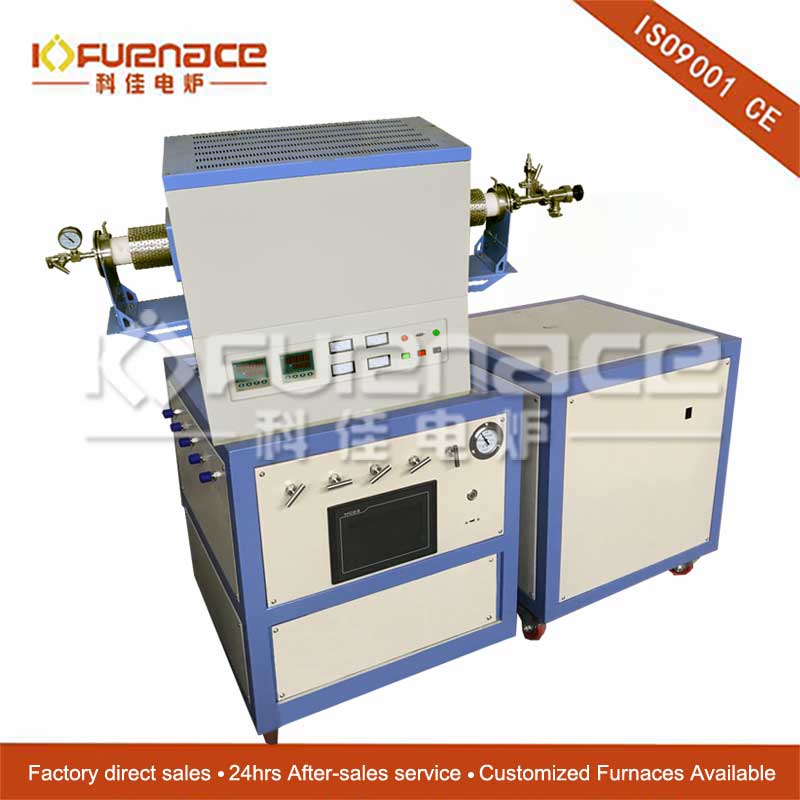

The KJ-T1600-L10030-LC4 is a highly integrated, compact tube furnace system composed of three core modules: a dual-zone high-temperature tube furnace, a 4-channel precision mass flow meter mixing system, and a rotary vane vacuum pump system. An optional water chiller for flange cooling is also available. This system is specifically designed for advanced material synthesis and process development requiring precise atmosphere control, dual-zone gradient heat treatment, and a vacuum environment.
Application Areas：
This system is particularly suitable for complex material fabrication processes requiring dual-temperature zones, multi-component atmospheres, vacuum, or low pressure. Typical applications include:
1. Chemical Vapor Deposition (CVD) and Two-Dimensional Materials
CVD growth of two-dimensional materials such as graphene, boron nitride, and molybdenum disulfide (MoS₂): Dual-temperature zones allow independent control of precursor evaporation temperature and deposition substrate temperature; 4-channel MFC allows precise control of carrier gas (Ar/H₂), carbon source (CH₄/C₂H₂), and dopant gas.
Carbon Nanotube (CNT) Array Growth: Utilizes temperature gradients to control catalyst activation and carbon source decomposition.
2. Advanced Ceramics and Composite Materials
Pressureless sintering or reactive sintering of non-oxide ceramics (Si₃N₄, SiC, AlN), with the introduction of N₂, Ar, or reducing atmospheres.
Denaturation of Ceramic Matrix Composites (CMCs): Gradient sintering is achieved through dual-temperature zones.
3. High-Temperature Vacuum Sintering of Transparent Ceramics (YAG, MgAl₂O₄)
4. Powder Metallurgy and Refractory Metals.
5. Vacuum or Hydrogen Sintering of Refractory Metal Powders such as Tungsten, Molybdenum, Tantalum, and Niobium.
6. Pressure-Controlled Sintering of Hard Carbide (WC-Co) Using MFC with Precisely Proportional Ar/CH₄/H₂ Atmospheres.
7. New Energy Materials
8. High-Temperature Sintering (1200-1500℃) of Solid-State Electrolytes for Lithium Batteries (LLZO, LATP), with O₂ or Ar introduced to prevent lithium volatilization.
9. Fuel Cells: Co-firing of electrolytes and electrodes in Solid Oxide Fuel Cells (SOFCs); Heat Treatment of Catalysts in Proton Exchange Membrane Fuel Cells (PEMFCs).
10. Solar Cells: Annealing of Perovskite Absorber Layers; Selenization Treatment of CIGS Materials (requires H₂Se or Se vapor).
11. Powder Metallurgy and Refractory Metals
2. Vacuum or Hydrogen Sintering of Refractory Metal Powders such as Tungsten, Molybdenum, Tantalum, and Niobium. 5. Catalysts and Chemical Engineering
Calcination, reduction, and activation of multi-component catalysts: Temperature-programmed reduction (TPR) or temperature-programmed oxidation (TPO) achieved through MFC.
Catalytic CVD: Growth of carbon nanofibers or graphene on catalyst surfaces.
6. Materials Phase Transformation and Thermal Analysis
Studying high-temperature phase transformations, thermal expansion, and oxidation behavior of materials under controlled atmospheres.
7. Universities and Research Institutes
Serving as a multifunctional high-temperature reaction platform for comprehensive experiments and cutting-edge research in materials science, physics, chemistry, and chemical engineering.
