Position:Home > Product Center > Vacuum Furnace > Vacuum Brazing Furnace

Model：KJ-V1300

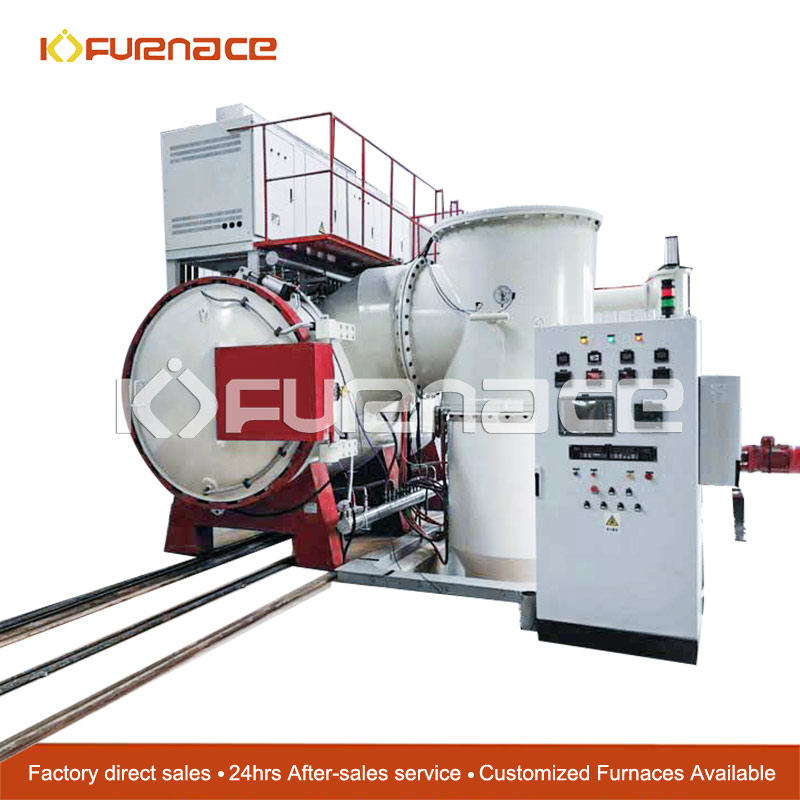

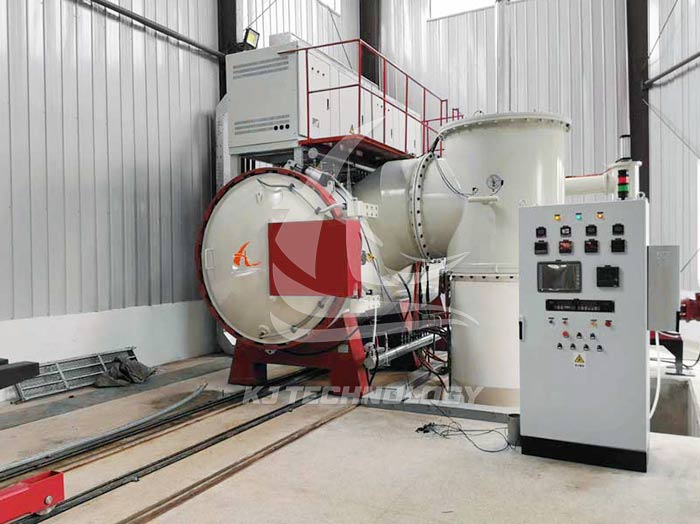

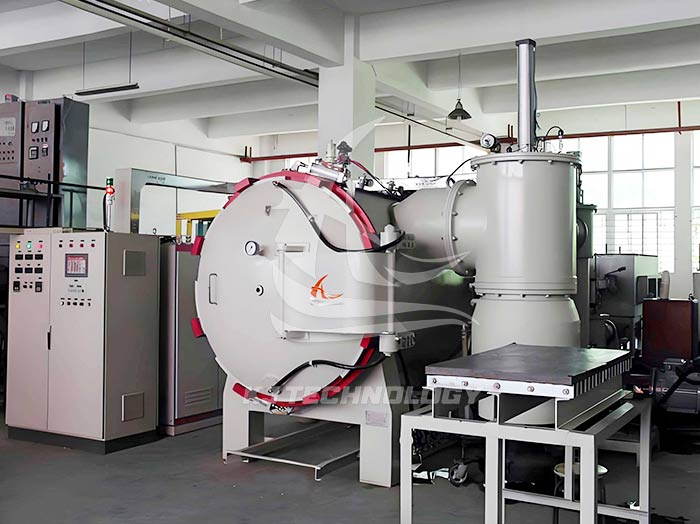

High temperature brazing vacuum furnace

Description：

Mainly used for vacuum brazing of stainless steel, copper alloy, high temperature alloy, titanium alloy, cemented carbide, metal ceramics, magnetic materials, non-ferrous metal materials and other materials, and the applicable brazing materials are nickel...

Email：web@kejiafurnace.com

Leave A Message

Online Chat

IntroductionFeaturesTechnical ParametersInquiryCustomer Case

Introduction:

The heating chamber can be heated by graphite tube, and the structure of multi-layer graphite felt or graphite hard felt insulation can be used;

For high product requirements or special material brazing, molybdenum belt heating, molybdenum sheet and stainless steel plate composite insulation structure heating chamber can also be used;

The effective heating area size can be customized according to customer needs;

Computer control system.

Application:

Mainly used for vacuum brazing of stainless steel, copper alloy, high temperature alloy, titanium alloy, cemented carbide, metal ceramics, magnetic materials, non-ferrous metal materials and other materials, and the applicable brazing materials are nickel-based, copper, silver-based, etc.

features

Single chamber, internal heating, cold wall, horizontal structure；Reasonable arrangement of heating elements, large radiation area, long life.
Reasonably designed metal heat insulation screen, good insulation effect, saving electricity, ensuring the high vacuum required for workpiece brazing.Multi-zone temperature control can be adopted to ensure good furnace temperature uniformity in the temper
Equipped with a dedicated condensation filter device to eliminate the contamination of the vacuum pump group by flux vapor；The touch screen interface is friendly and practical, which can display and monitor the operation status of the equipment, call, edi
Fully automatic control can realize "online" production management；With safety interlocking, fault diagnosis and abnormal alarm functions；The furnace door is equipped with a unique sealing structure to ensure positive and negative pressure bidirectional

Technical Parameters

Model	Effective heating area size (width * height * depth/mm）	Maximum temperature(℃)	Ultimate vacuum(pa)	Temperature uniformity(℃)	Pressure rise rate(Pa/h)	Loading capacity(kg)
KJ-V1300-36W	300300400	1300	6.67*10-3	±5	≤0.67	80
KJ-V1300-96W	400400600	1300	6.67*10-3	±5	≤0.67	150
KJ-V1300-175W	500500700	1300	6.67*10-3	±5	≤0.67	280
KJ-V1300-324W	600600900	1300	6.67*10-3	±5	≤0.67	450
KJ-V1300-768W	8008001200	1300	6.67*10-3	±5	≤0.67	750
